ULTRA WIDEBAND

ULTRA WIDEBAND

World-leading UWB Innovation Positioning

CM level accurate ranging with angle direction​

A fully integrated single chip Ultra Wideband (UWB) low-power low-cost system including RF transceiver, baseband, protocol, software, MCU, SRAM, Flash and generic interfaces, compliant with IEEE802.15.4-2020 & IEEE802.15.4z-2020 and certified by FiRa high rate pulse repetition frequency (HRP) UWB standards. Support various ranging and positioning methods: two-way ranging (TWR) based on time of flight (ToF), time difference of arrival (TDoA), 3D angle of arrival (3D AoA).

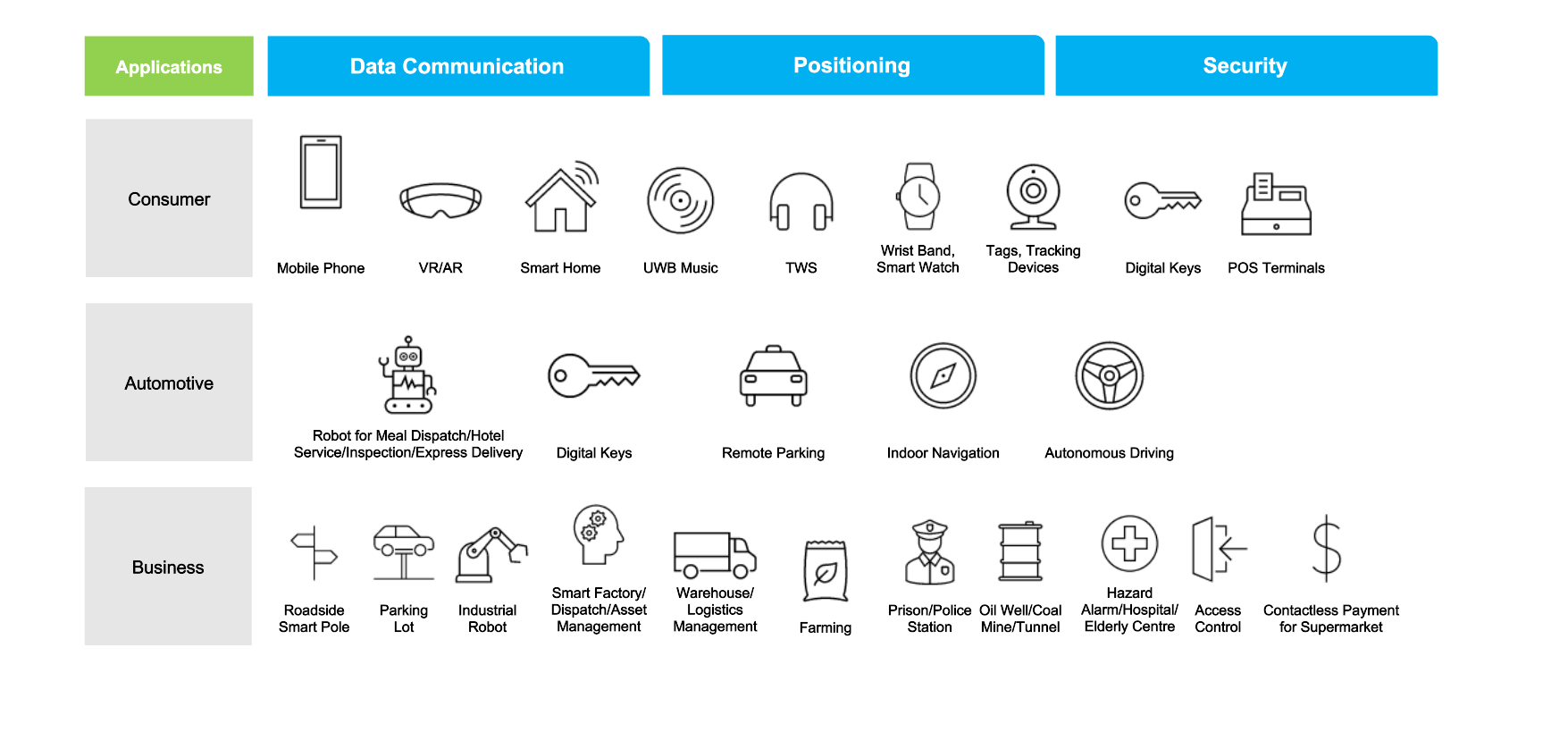

People Tracking

Physical Asset Tracking

Location Positioning

Indoor Navigation

Secure Hands-Free Access and Payment

Business Intelligence​

Solution Highlights

Features

  • Highly integrated SoC based on UWB technology, comprising of RF, analog, baseband, MCU, SRAM, flash and peripherals
  • Compliant with IEEE802.15.4-2020 & IEEE802.15.4z-2020 and certified by FiRa
  • Frequency range from 4.0GHz to 9.0GHz
  • Support various types of ranging: Two Way Ranging (TWR) based on Time of Flight (ToF), Time Difference of Arrival (TDoA), 3D Angle of Arrival (3D AoA)
  • Better than ±6cm TWR ranging accuracy and ±3° AoA accuracy
  • Support 1 Tx antenna and maximum of 4 Rx antennas for 3D AoA positioning applications
  • Receiver sensitivity: -93dBm @6.8Mbps and -101dBm @850Kbps
  • Support variable data rates from 850Kbps, 6.8Mbps, 7.8Mbps, 27.2Mbps and 31.2Mbps ​
  • Maximum packet length of 4095 bytes for high data throughput applications ​
  • Various working mode for different application scenarios: power off, deep sleep, sleep, receiving and transmitting ​
  • ARM Cortex-M0 32bit processor with the clock up to 124.8MHz ​
  • SPI/UART/I2C/GPIO peripheral interfaces ​
  • Extremely low power consumption for extended battery life ​
  • Integrated AES-128/256 for secure ranging ​
  • Support both SoC mode and transceiver mode ​
  • SPI interface to the external host processor with the clock up to 40MHz ​
  • Low BoM cost due to the high integration of SoC, no external PA, balun and transformer is required ​

Specifications

Model no:

SU110-1

Dimension:

31.5mm*16.8mm (+/- 0.2mm)

Antenna:

Single PCB antenna

Operating frequency:

6GHz to 8.5GHz (Ch5 – Ch9)

RF Transmit Power:

37mW

Interface:

UART/12C/GPIO

Operating temperature:

-40°C ~ 85°C

Storage environment:

-40°C ~ 125°C, < 90%RH

Operating voltage:

SU110-1: DC3.3V

Operating current:

Typical: 100mA; Standby: <10uA

Popularity of Intelligent and Mobile Terminals ​Makes Accurate Indoor Location Data Essential​

Comparison of Different Technologies for Server-based Indoor Positioning
